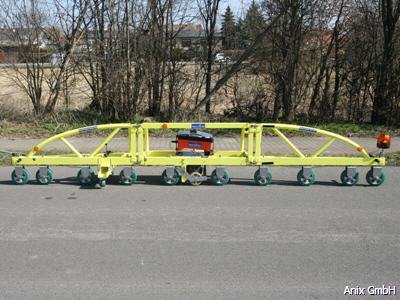

The new Planograph AX®02 of the Anix GmbH consists of three single segments.
This separable four-meter long construction made of aluminum and stainless steel allows an easy transport. A special trailer is not required and even an estate car can be used for the transport. The Planograph can be connected on site by just one person.

The crucial factor for the quality and function of a Planograph is the deflection of the frame. A deflection of 0.8 mm is allowed and the new Planograph AX®02 meets this requirement with enough reserve!

Also new is the fixed wheel suspension which happens by means of vertical adjustable screws.
The separable Planograph can be carried by one person with the hand draw bar, alternatively the car drawbar permits the carriage of the Planograph by car in walking speed.

The modern electronic evaluation device can be used on the Planograph or in the vehicle which is pulling it.

During the measurement the electronic evaluation device records the exceeding p and p² as well as the flatness structure along the entire distance on an SD-card.

The evaluation of the measurement is generated automatically and can be displayed on the built-in mini printer immediately on site. In addition, the evaluation can be displayed and printed in diagrams on the PC.

The Planograph AX®02
