Plate Bearing Tester AX®01

Plate load test according to DIN 18134

Plate Bearing Test

Plate load test in accordance with DIN 18134

The electronic plate bearing tester AX®01 allows to determine the bearing capacity and the deformability of soils very easily. By applying and releasing the load on the soil repetitively the load-settlement curve as well as the strain moduli Ev1 and Ev2 and the modulus of subgrade reaction are determined – according to DIN 18134 :2012-04 . With its waterproofed case, outside lying buttons and an illuminated display the electronic device can also be used under bad environmental circumstances. Test certificates can already be printed at the building site. The results of the inspection can be saved on an SD-card for further treatment on the PC.

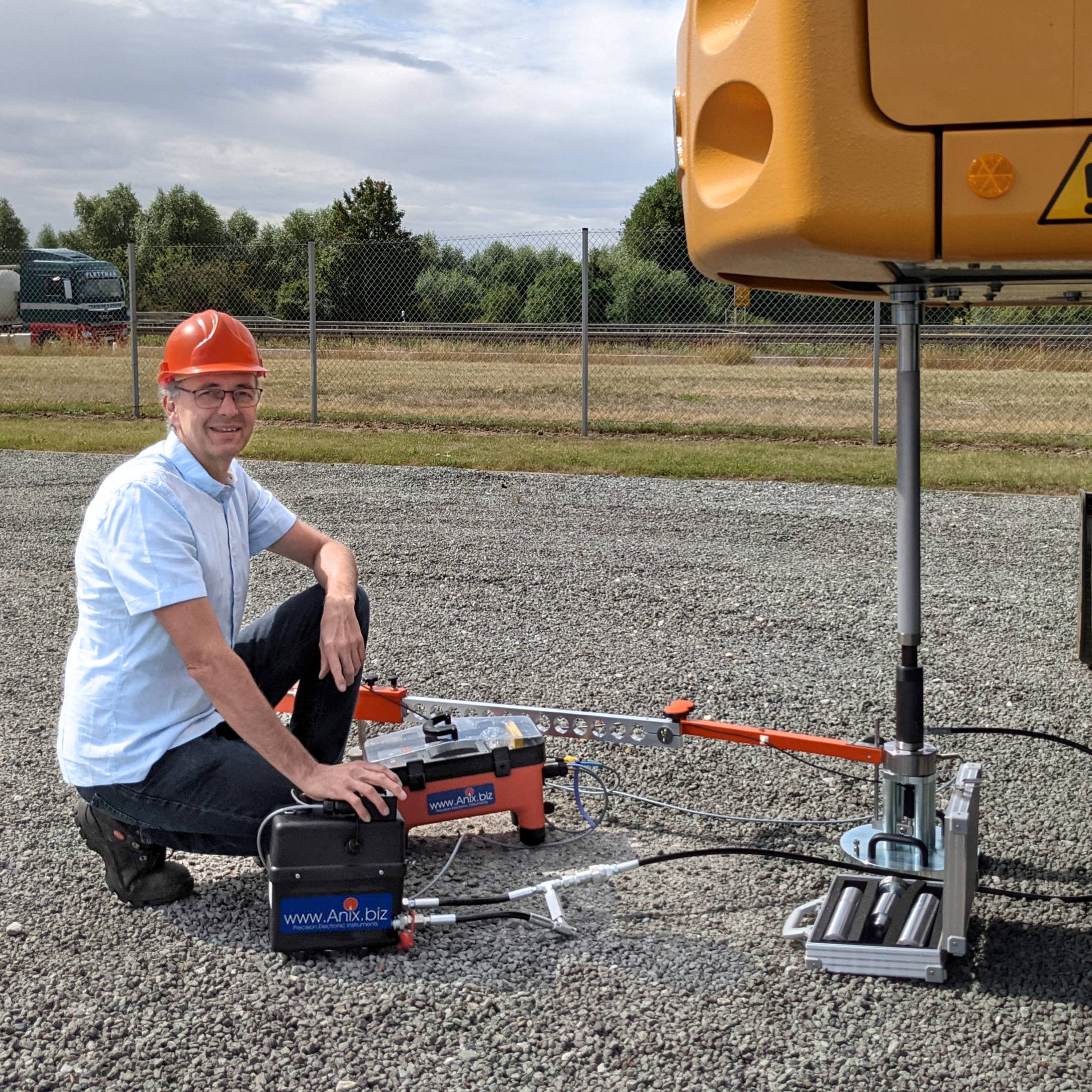

Plate Bearing Test The Plate Bearing Test with the Plate Load Tester AX®01

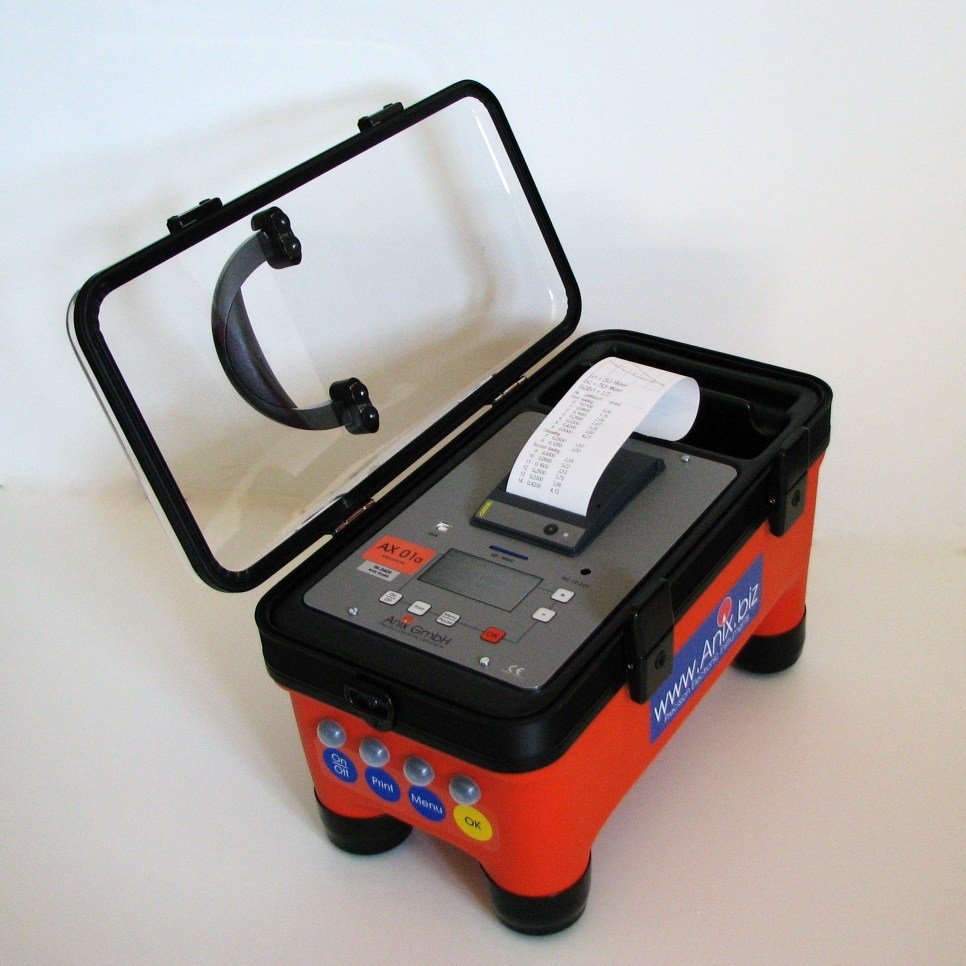

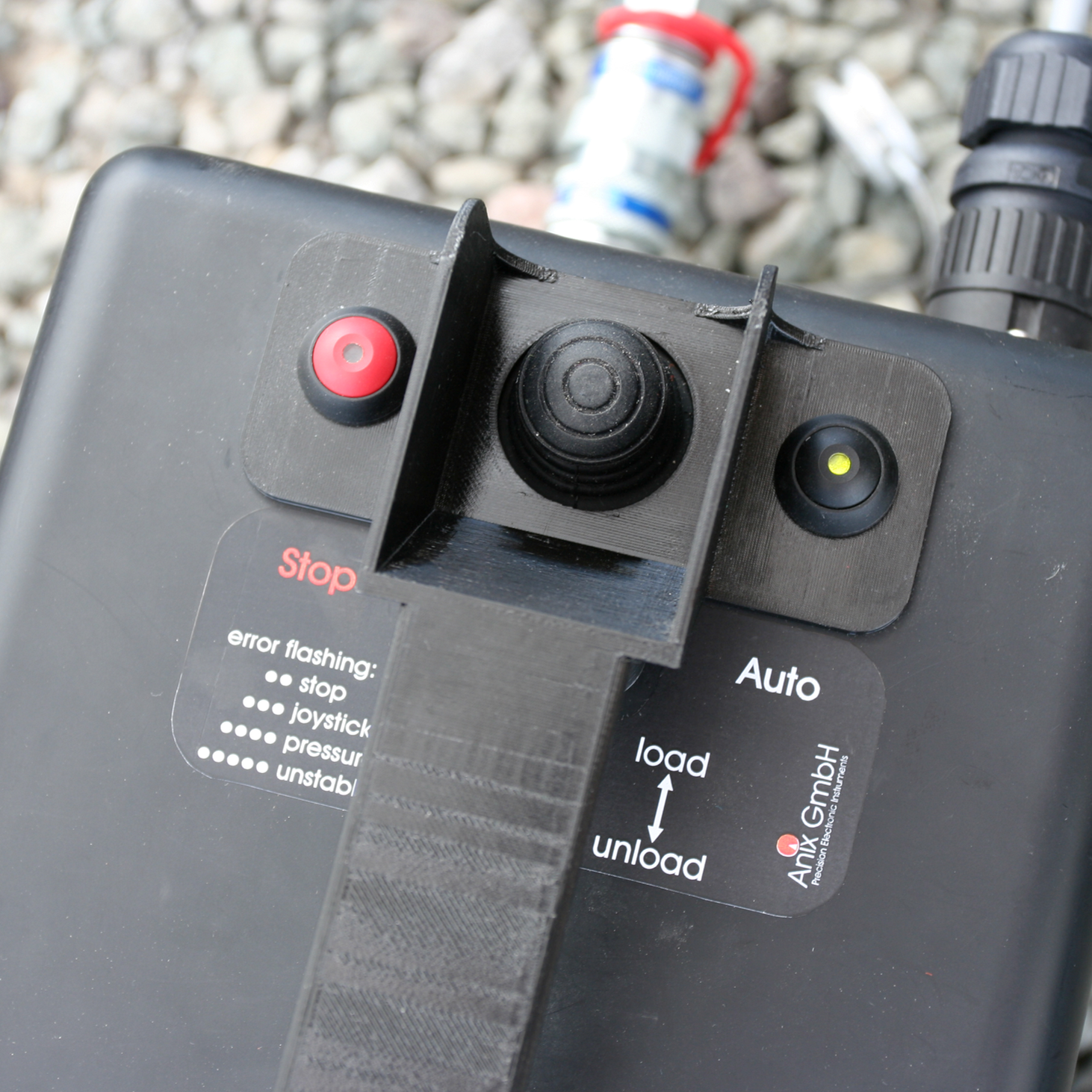

Measurement device

Technical data: electronic measurement device

  • Plate Bearing Test The Plate Bearing Test with the Plate Load Tester AX®01
  • Diameter of bearing plate: 300 mm, 600 mm, 762 mm adjustable
  • Lever ratio 1:1
  • Resolution: settlement/displacement 0,01 mm, standard load 0,0001 MN/m²(printed and saved), 0,001 MN/m² (displayed)
  • Rechargeable battery, built in, 4,8 V, 4 Ah, full charge 2 h; approx. 48 h non-stop usage
  • Thermal printer, paper width 58 mm
  • SD-card, storage of about 200 test

Supported standards:

  • DIN 18134:2012-04, Plattendruckversuch, Deutschen Institut für Normung
  • CNR BU 146 1992-12, determinazione del MODULO DI DEFORMAZIONE, Consiglio Nazionale delle Ricerche
  • ÖNORM B4417:1979-12, Erd- und Grundbau; Untersuchung von Böden; Lastplattenversuch, Austrian Standards Institute
  • SN 670 317b:1998, Plattendruckversuch, Norme Suisse
  • TSC 06.720:2003, MERITVE IN PREISKAVEDEFORMACIJSKI MODULI VGRAJENIH MATERIALOV, REPUBLIKA SLOVENIJA
  • NF P94-117-1:2000-04, Portance des plates formes – Module sous chargement statique à la plaque, Norme française
  • BS 1377 Part 9:1990-08 Methods for test for soils for civil engineering purposes. In-situ tests, British Standards + HD 25 PAVEMENT FOUNDATIONS
  • AASHTO T 222, ASTM D 1195, ASTM D 1196, Standard Test Method for Repetitive Static Plate Load Tests of Soils and Flexible Pavement Components, for Use in Evaluation and Design of Airport and Highway Pavements, Standard Test Method for Nonrepetitive Static Plate Load Tests of Soils and Flexible Pavement Components, for Use in Evaluation and Design of Airport and Highway Pavements, American Society for Testing and Materials
  • UNE 103808:2006-02, Ensayo de placa de carga, Asociación Española de Normalización y Certificación
  • Standaardbestek 250 – Hoofdstuk 14.16, Samendrukbaarheidsmodulus
  • Aflevering Proefmethodes – Hoofdstuk 50.01, Samendrukbaarheidsmodulus
  • MSZ 2509-3:1989, Útpályaszerkezetek teherbíró képességének vizsgálata, Magyarország
  • VVMB 606 – Bestämning av bärighetsegenskaper med statisk plattbelastning Sammanfattning

Plate Bearing Test The Plate Bearing Test with the Plate Load Tester AX®01

Mechanics

Technical data: mechanics

  • Direct measurement of settlement according to DIN 18134, compressive force 100 kN, measurement with only one displacement transducer

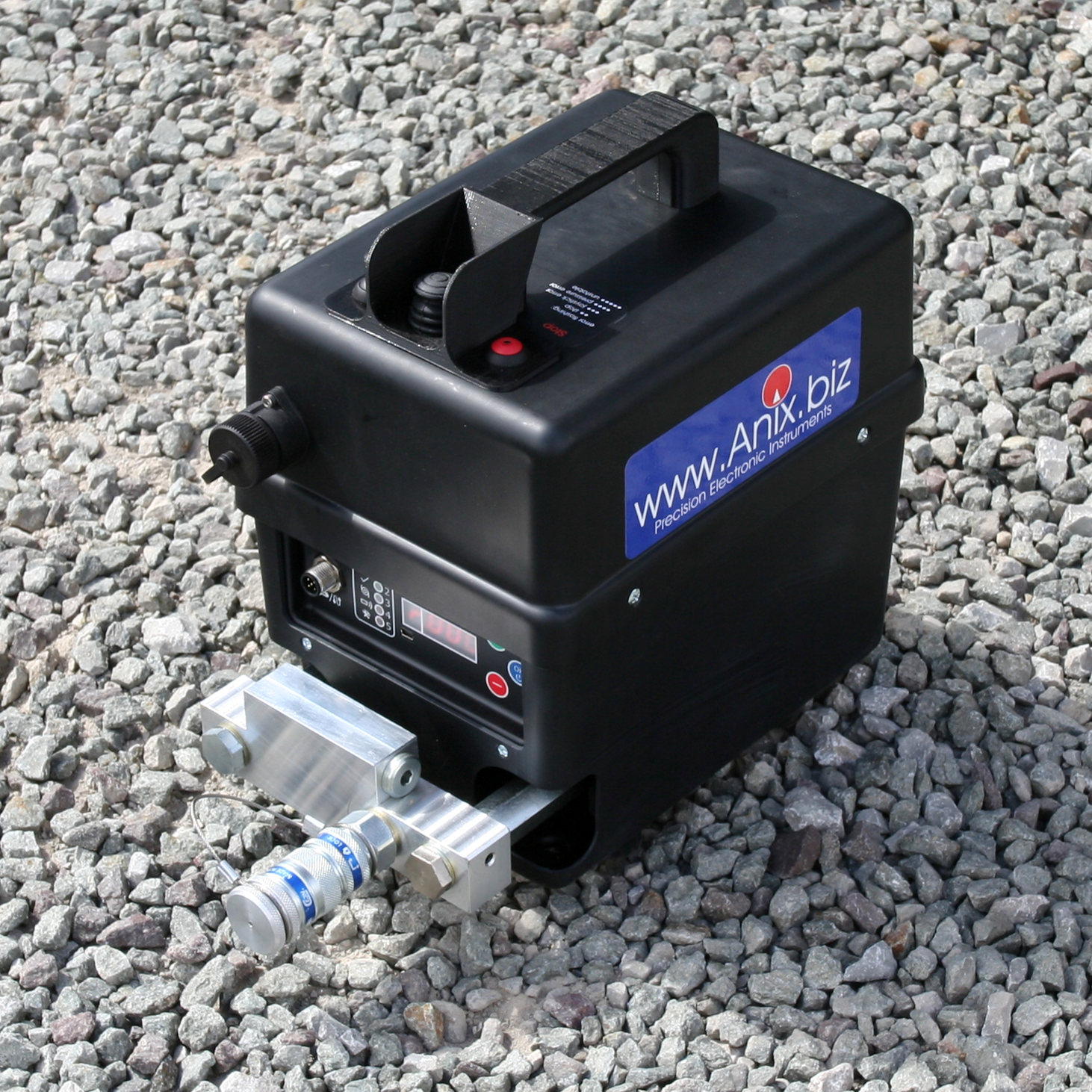

  • Manual hydraulic pump with pressure jack for 100 kN compressive force
  • High-pressure hose with a length of 2m
  • Bearing plate S355J0, ø 300 mm with rectangular opening, mounting plate for force sensor and adjustable circular level
  • Supporting frame with telescopic measuring arm and round bases for direct measuring
  • Pluggable extension kit (total length 650 mm)
  • Upper magnetic clamp with ball joint (rated for up to 50 kN)
  • Displacement sensor mounting: 250 mm and 500 mm long

Plate Bearing Test The compact tripod of the Plate Load Tester AX®01

Dimensions

Dimensions: (Plate bearing tester)

  • Supporting frame: l x w x h (min): 1150 × 340 × 260 mm, mounted approx. 2330 × 340 × 310 mm, weight: 13,9 kg
  • Bearing plate with force sensor: diameter 300 mm, height 265 mm, weight 22,6 kg
  • Extension parts: 2 × 25 mm, 2×50 mm, 2×100 mm, 2×150 mm, total 3,5 kg
  • Upper ball joint with magnet 0,9 kg
  • Electronic measurement device: 4,5 kg
  • Total weight: 54,9 kg (without packing)

Plate Bearing Test DIN 18134 Direct measurement of the settlement of the plate using the LVDT of the Plate Load Tester AX®01

Scope of delivery

Scope of delivery of the plate bearing tester

  • Plate Load Test / Plate Bearing Test
  • Electronics AX®01 with power supply unit
  • Displacement transducer
  • SD-Card-reader (Windows-PC, USB)
  • Power supply unit 100-240 V and car charging cable (12/24 V Cigarette lighter socket ø21 mm)
  • Excel®-file with macro for the import of the measured in the data
  • Brief instruction, instruction manual
  • 2+1 paper rolls
  • Force sensor 100 kN
  • Complete mechanics

Plate Bearing Tester DIN 18134 The Plate Bearing Test with the Plate Load Tester AX®01
