The dynamic plate load test ZFG 3000 ZFG 3.0

The dynamic plate load tester ZFG 3000 is used for the implementation of the dynamic plate test according to german test method TP BF-StB Part 8.3. The dynamic deformation module (Evd value) of soil and rock is determined. This high-tech measuring instrument has features that ensure a quick, convenient and accurate determination of the measurement data in road and pipeline construction. Its special features are automatic position determination through integrated GPS, integrated thermal printer, storage of test results on modern SD cards and ease of use.

The ZFG 3000 GPS can be used to determine the load-bearing capacity and the quality of soil compaction fast and simply. Thanks to GPS, each measurement can immediately be allocated to the relevant position.

All data can be displayed both on site and on the PC without any problems.

The ZFG 3000 GPS is suitable both for self-supervision and for documentation of measured values.

A specific weight falls from a specified height and creates a defined impact force which affects a loading plate. The loading plate is subject to settlement due to the impact force. The acceleration, the speed and the settlement displacement are electronically evaluated and the dynamic deflection module (Evd) is calculated.

The easy-to-operate ZFG 3000 GPS enables the user to enjoy short test times (approx. 2 minutes), precise measurements, on-site printouts complete with all information and simple data transmission to the PC. The measured result is available after only 4 stages.

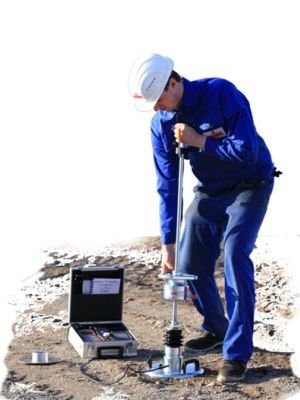

ZFG 3000 The ZFG 3000 in use.

Field of application

ZFG 3000 – ZFG 3.0

  • Soils
  • Base layers without binders
  • Mineral sealing layers
  • Backfill
  • Soil improvement with lime
  • Recycling materials
  • Way fittings, bike and walkways

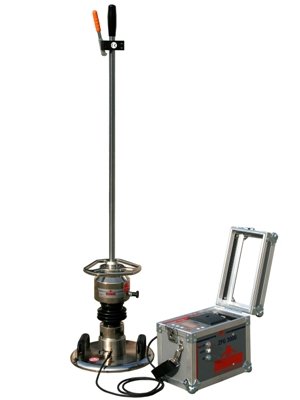

ZFG 3000 The ZFG 3000.


ZFG 3000 – ZFG 3.0

The dynamic deformation module can immediately be read on the site, printed out and evaluated. For the statistical analysis by ZTVE-StB 94 and ZTVT-StB 95, all data is stored in the device.

Each record contains the reduction curves, the amplitude reduction at a resolution of 1 micron, the associated geographical coordinates and s / v value. The geographical coordinates, date, time and the current test number are always available on the device and the PC.

Immediate evaluation:
- The dynamic modulus of deformation, settlement, position coordinates, s / v value, number and date
- Values ??are displayed on the backlit display graphics capability
- Expression of one or more test reports directly to the site
- Browsing and printing the data stored on the SD-card

Compact design with window:
Check can be made through the viewing window and the external switches in silicon taken in the closed state. This is a protection against weather, dust and dirt.

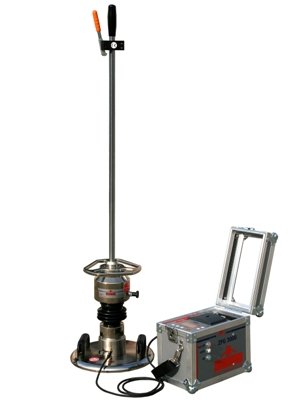

ZFG 3.0 The ZFG 3.0.

Sample applications

ZFG 3000 – ZFG 3.0

  • Examination of the stability of slopes and banquets compaction control in trenches, head hole filling, backfilling foundations and other hard to reach areas
  • Examination of road beds even after installing the patch as well as multistory car park on insulating layers, etc.
  • Examination of the sustainability in the context of exploration or subsequent control tests in boreholes
  • Examination of the the elasticity of sports ground coverings of all types

ZFG 3000 The ZFG 3000 in use.


ZFG 3000 – ZFG 3.0

Fully automatic measurement of the settlement of the load plate with built-in sensor and positioning of built-in GPS receiver.

Signal processing in integrated micro computers and digital display on the graphics capable back-lit display.

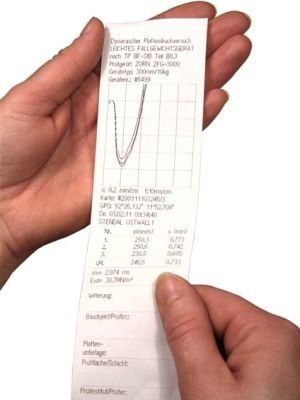

Mini printer for the date, time, test number, setting the course, maximum subsidence, settlement rates, module Evd and position data.

Control guidance in plain text display and audible confirmation.

Metering mode: Displayed: three translation and its average amplitude, the dynamic deformation module, s / v value, position coordinates

Calibration: checking the operation of the equipment on site without additional equipment by taking advantage of gravity.

ZFG 3000 The ZFG 3000 in use.


  • Storage of test records with the reduction curves on the SD-card

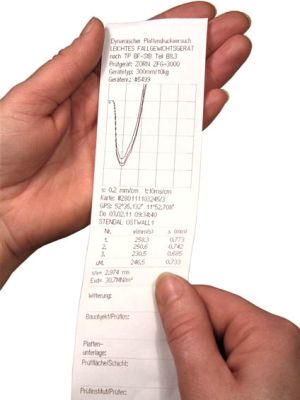

  • Subsequent expression of the stored test protocols
  • Reading the audit logs through SD-card into the PC
  • Browsing the data stored on the SD-card data
  • Creating test reports with test results in a table and statistical analysis on the PC
